Location：Home > Products and Services > Products

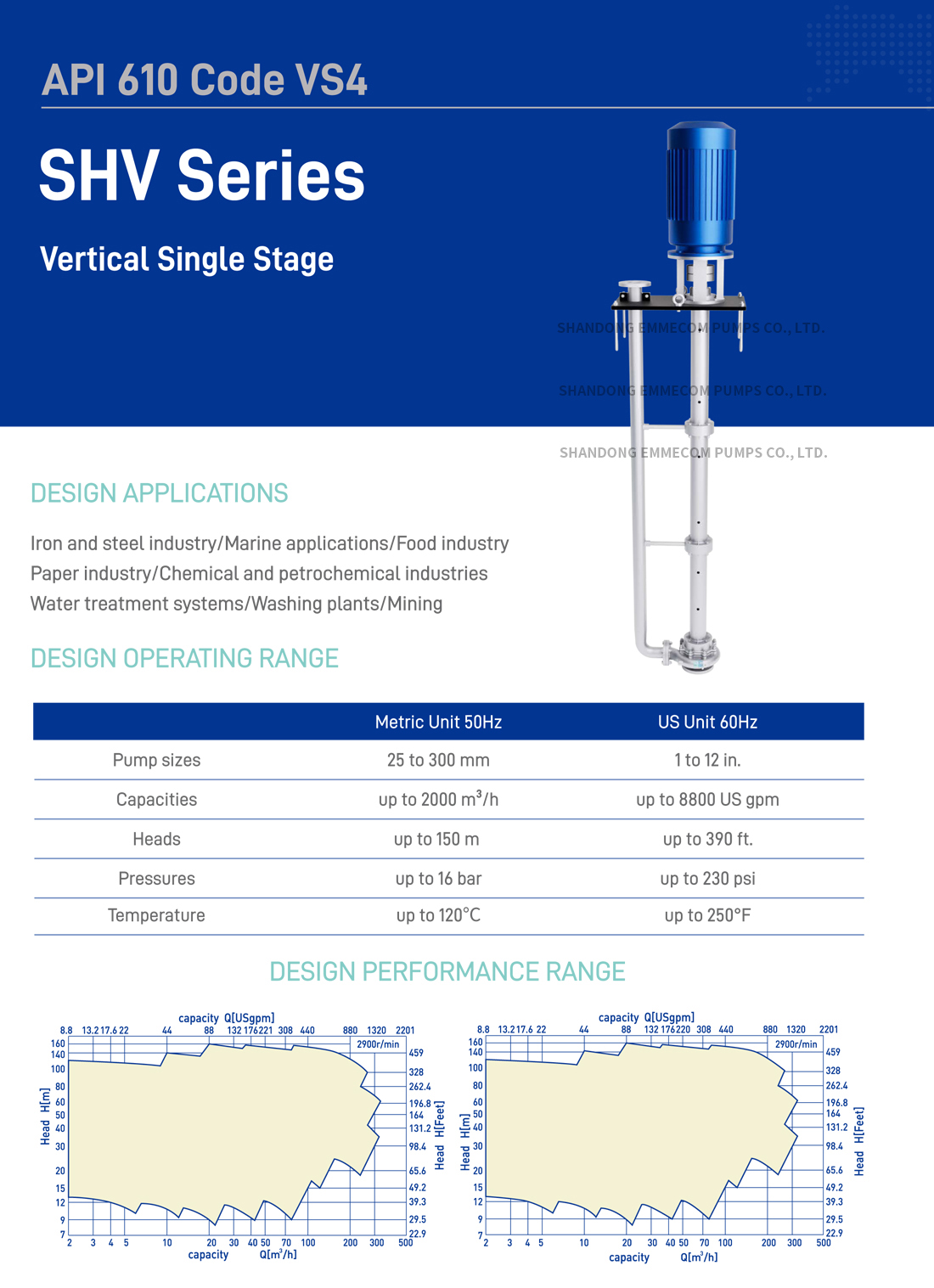

SHV Series Vertical Chemical Process Pump
The SHV single stage vertical submerged centrifugal pump is derived from the SEH pump. Pump casing, impeller and other main flow parts are interchangeable with SEH series. Its marking, performance and dimensions are equivalent to IS02858. It is suitable for chemical process and conveying corrosive media.
Suit： Industrial market      Petroleum and Petrochemical

Maximum flow

1200m3/h

Maximum head

150m

Pmax

16Mpa

Temperature

-40°C~350°C

Product Overview

The SHV single stage vertical submerged centrifugal pump is derived from the SEH pump. Pump casing, impeller and other main flow parts are interchangeable with SEH series. Its marking, performance and dimensions are equivalent to IS02858. It is suitable for chemical process and conveying corrosive media.

Performance range

Size: 25~250mm

Flow: 5~1200m3/h

Head: 3~150m

Speed: 2900r/min, 1450 r/min

Temperature: -40°C ~350°C

Max pressure: 16bar
